Descripción
Superior 200 amp inverter equipment, with synergistic electronic adjustment for all types of electrodes, special for use with aluminum and TIG Lift Arc with intelligent adjustment. Mask with EN169 protection degree adjustable from DIN 9 to DIN 13. With high resistance polymer, sun protection and prepared for grinding.
CHARACTERISTICS
- Synergistic configuration based on electrode diameter, up to 5mm in diameter. Suitable for all types of electrodes.
- Latest generation components, top quality IGBTs and reinforced internal construction and improved and silent ventilation.
- It incorporates 4 diode bridges, providing stability and great power transmission.
- Complete control panel managed by STAYER software, with incremental adjustment of Arc Force and Hot Start, VRD On/Off.
- Synergic TIG PRO intelligent, when connecting the TIG torch it self-adjusts to TIG Lift Arc welding without contact with clean and quality ignition.
- Special for use of aluminum electrodes.
- Possibility of activating the VRD function, voltage reduction in the terminals under vacuum to maintain safety in humid environments, according to IEC 60974.
- Incremental regulation of Arc Force and Hot Start for coated electrodes of any type, obtaining better results in different types of welding.
- Easy to use, it has anti stick automatically configured by the STAYER software.
- Equipment designed and manufactured in accordance with European regulations 2014/35/EU, 2014/30/EU and 2011/65/EU, which guarantee solid construction and safety of use.
- Prepared for use with a stabilized generator, given its voltage input range of +/-17%.
SPECIFICATIONS
- Current: 200 A
- Power: 230V
- Electrode: 1.6 – 5 mm
- Use with generator: 7 – 9 KVA / 230V ±17%
- Gear Factor (30ºC): 60%
- Dimensions: 34.5 x 24 x 14 cm
- Weight: 5kg
- DINSE terminal: 1/2” (35 – 50) ø
- Power cable: 2m x 2.5 mm²
- Cable + Ground clamp: 1.5m – 25 mm²
- Cable + Electrode clamp: 2.5m – 25 mm²
- Hammer/Brush Included
- Briefcase included
- Code 1.2668

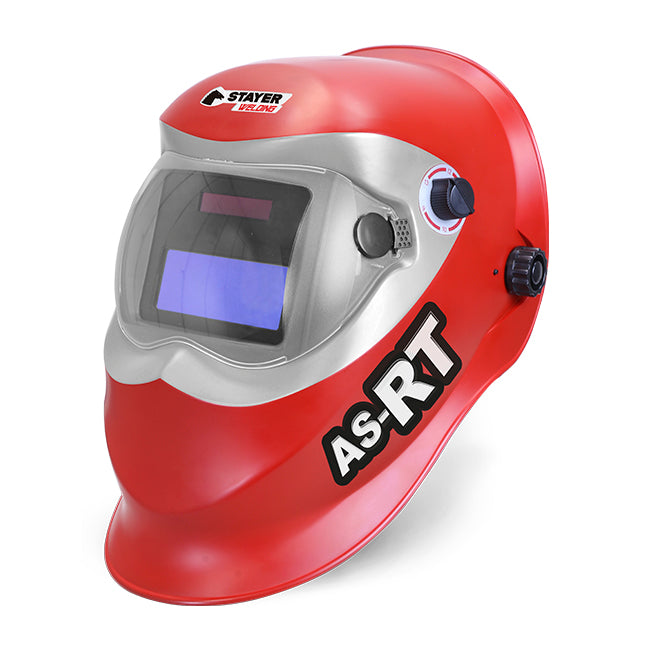

MASK SPECIFICATIONS
- Filter: 110 x 90 x 8mm
- Viewing area: 92 x 35mm
- Clear state protection grade: 4 DIN
- Dark state protection grade: 9 / 13 DIN
- UV/IR protection: 15DIN
- Light to dark time: 1/20000 s
- Dark to light time: 0.2 – 0.8 s
- Adjustable sensitivity: Yes
- Use temperature: -5 +55 ºC
- Weight: 500 gr
- Safe use time: 2 years
- Filter life: 2 years
- Filter battery: Solar/AAA
- Code 1.2093
