Descripción
The smallest and lightest press at only 1.8 kg provides more comfortable handling. Pressure range up to 35mm on metal tube and 40mm on composite.
CHARACTERISTICS
- Patented design allows you to work in restricted areas with one hand

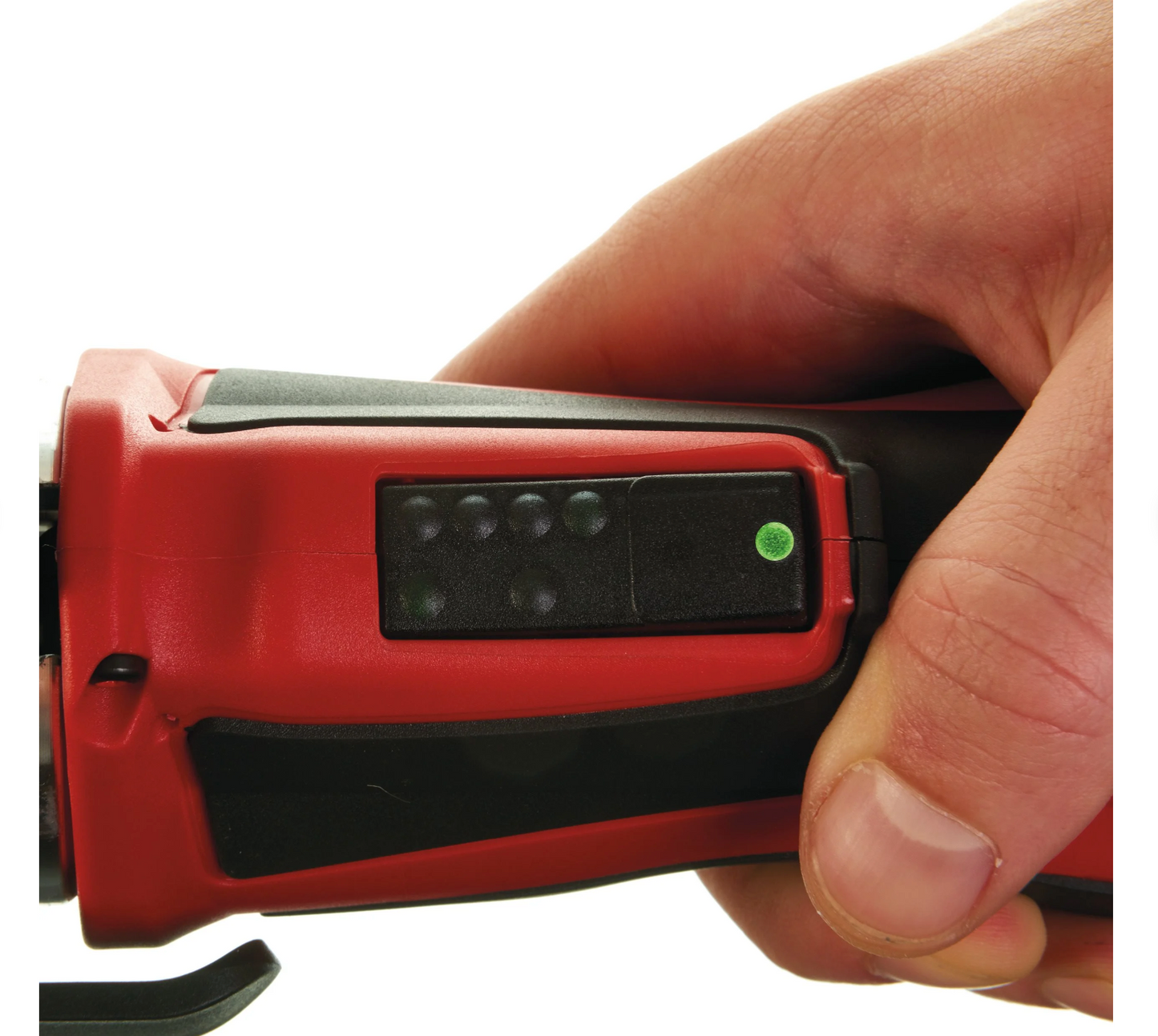

- Pressure indicator: confirms that the connection has been made correctly
- Battery-tool communication: Crimping will not start if there is not enough battery charge to complete the crimp. A pre-crimp battery level check ensures that there is enough charge to complete each crimp.
- FORCE LOGIC™ long-term reliability: no limitation of pressing cycles within the 3-year maintenance interval
- Accurate 4-step battery status indicator
REDLINK™ electronics protect the machine and battery from overload
- Individual monitoring of battery cells optimizes machine autonomy and ensures long battery life
- REDLITHIUM™ batteries, with a robust construction, are capable of offering constant performance thanks to their electronics, with greater autonomy and more working capacity throughout their life.
- Flexible battery system – works with all MILWAUKEE® M12™ batteries
SPECS
| Pressing cycles | 40,000 |
| Pipe diameter | 12mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 26mm, 28mm, 32mm, 35mm |
| Pressing force | 19 kn |
| Max. Metal Press Size | 35 mm |
| Max. Crimping size in plastic | 40 mm |
| Voltage | 12V |
| Weight | 1.8 kg |
INCLUDES
- Hydraulic press
- M12 Battery
- M12 Charger
- 3 U-clamps (16/20/25mm)
- Kitbox
