Descripción
The fischer UltraCut FBS II is the concrete screw for the highest assembly demands. The special sawtooth geometry allows for fast cutting in concrete. When mounting on ceilings or floors, it is not necessary to clean the perforations. Thanks to national approval, multiple use in temporary anchors is regulated, e.g. e.g. in formwork. To mount the wall screw, a tangential impact wrench with a nut suitable for the impact wrench or a special Torx Bit is recommended. The concrete screw is ideal, for example, for fixing railings, impact protection, brackets or formwork supports.
ADVANTAGES
- Maximum flexibility in the load and thickness of the part through up to two approved screwing depths.
- The special sawtooth geometry allows for fast cutting in concrete.
- It is not necessary to clean the drilling when mounting on ceilings or floors, or when using vacuum burrs.
- Anchoring without expansion pressure (recess) guarantees lower edge and axis distances.
- The ETA approval covers use in cracked concrete, as well as seismic performance categories C1 and C2.
- The approval-compliant adjustment allows the concrete screw to be loosened 2 times and the component to be placed under or aligned.
- National approval regulates multiple use in temporary anchors (e.g. formwork).
APPLICATIONS
- Protective railings
- Consoles / Motherboards
- Metallic profiles
- Shelving systems
- Protective barriers
- Results / beam fixings
- Temporary anchoring, eg of construction equipment

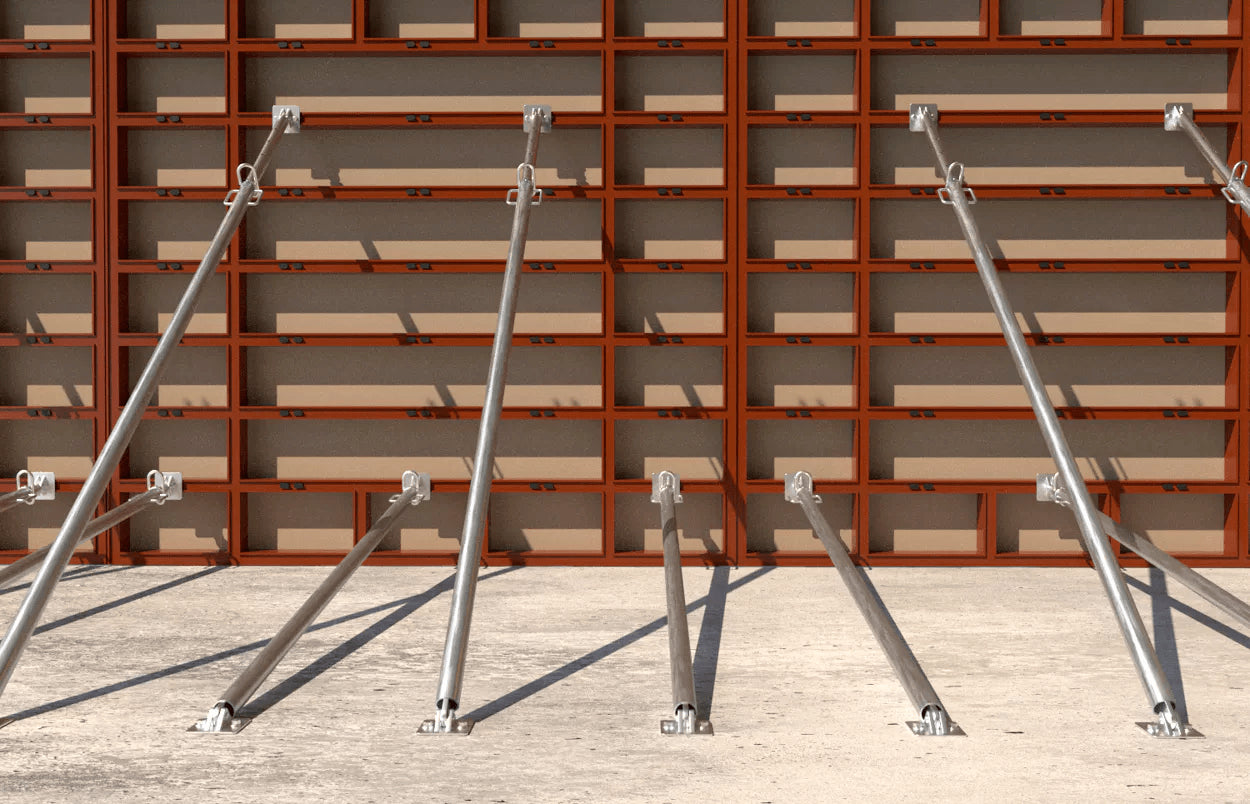

- Formwork props
CONSTRUCTION MATERIALS
- Approved for:
- Concrete C20/25 to C50/60, cracked or without cracks
- Also suitable for:
- C12/15 Concrete
- Solid building materials
- High density masonry
FUNCTIONALITY
- UltraCut FBS II is recommended for push installation.
- No need to clean drilling holes during vertical installation (ceiling and floor). For floor fixings, the hole must be drilled 3 times deeper.
- We recommend using a tangential impact driver with a suitable impact driver socket or internal torque drive.
- The screw is installed correctly when the screw head sits flush with the bracket and cannot be screwed any deeper (visual fit check).
